14 Axis Cnc Bender Sheet Metal Cnc Press Brake 40t For Metal Plate

Quick Description

• Slider Stroke (mm): 1800 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 175 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 1250 mm
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Brass / Copper, Stainless steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
• Automation: Automatic
• Weight (KG): 8000
• Motor Power (kw): 45 kw
• Key Selling Points: High-accuracy
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company
• Showroom Location: Egypt, United Kingdom, Viet Nam, India, Mexico, Thailand, Sri Lanka, Malaysia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 24 months
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
• Power: CNC
• Name: Panel Bending Machine
• Number of axes: 11/12 optional
• Model: DA52S
• Application: for press brake
• Bending angle: 0-180°
• Dimension: 3370*1890*2650
• Minimum arc radius: 1.2mm
• The fastest continuoue bending speed: 0.5s
• Type: CNC Hydraulic

More Details

Compared with traditional hydraulic bending advantages:

1. The processing speed is fast, up to 0.2 seconds/knife;
2. High precision, can reach 0.1mm-0.2mm, the machine is equipped with 15 axes as standard, realizing full automation of complex workpieces.
3. The machine is easy to operate, and one worker can operate multiple devices.
4. The bed is made of castings, with good stability and mature technology, and the machine can be used for a long time to ensure high precision.

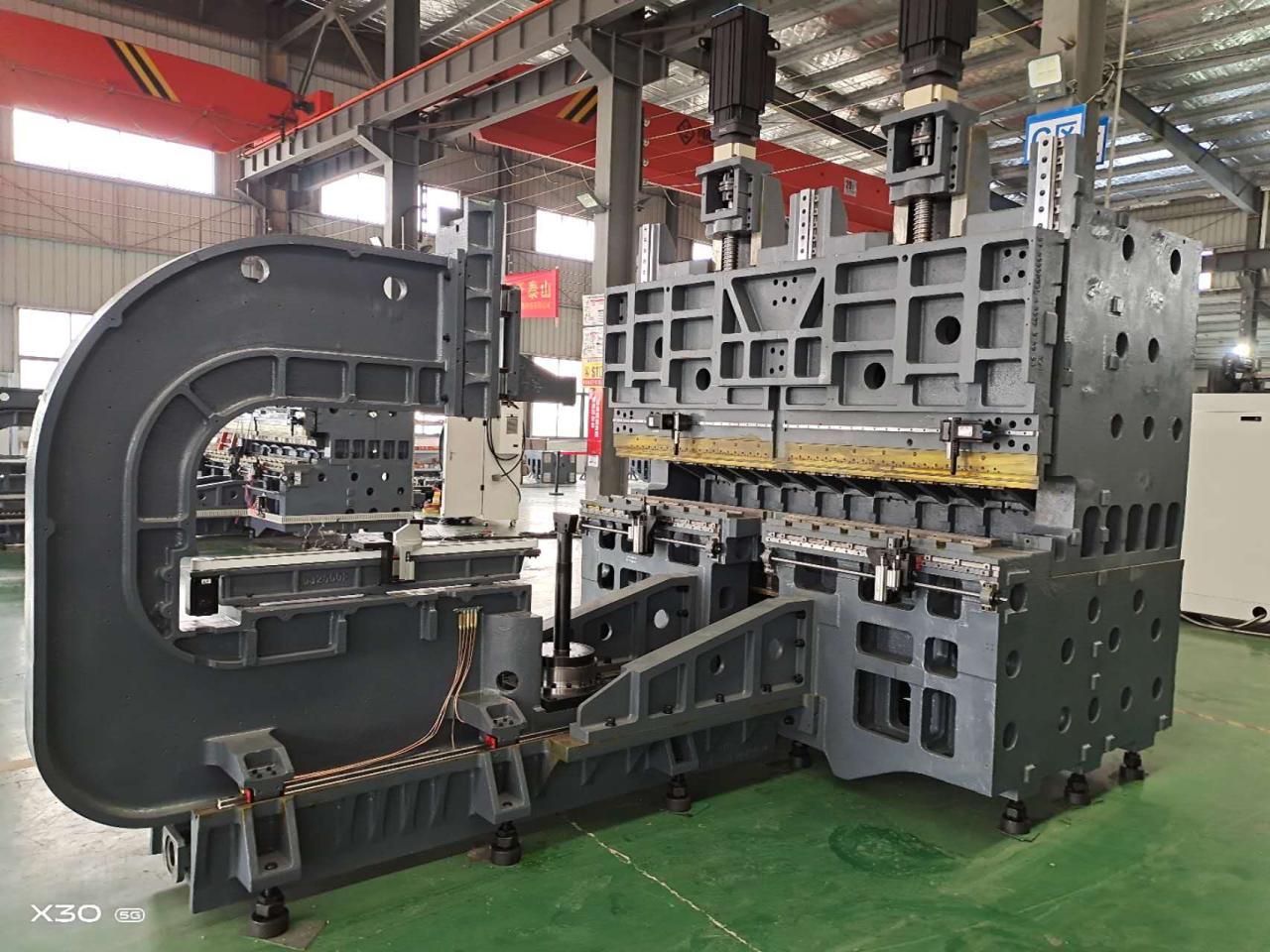

Casting!

Casting machine structure and machine body, which ensures machine stable and no shape change for long years use. machine with heat treatment!

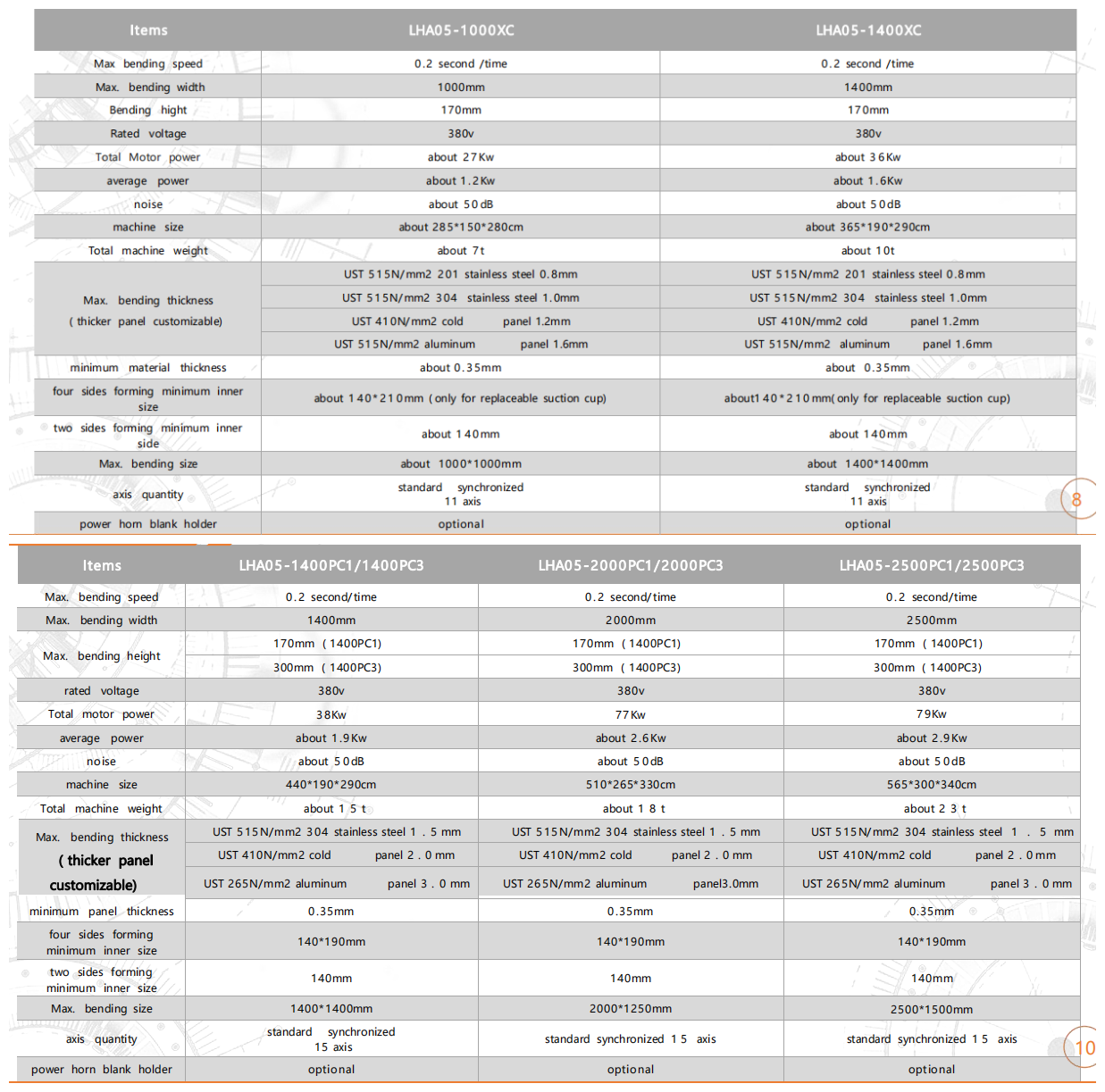

Panel bending machine parameters

Standard model for ref. Welcome to share with Rbqlty team your work piece drawing, we will send you matched model and test bending video to show directly the ending products!

Contact us with your plate size, thickness and material. Provide you with a more suitable machine.

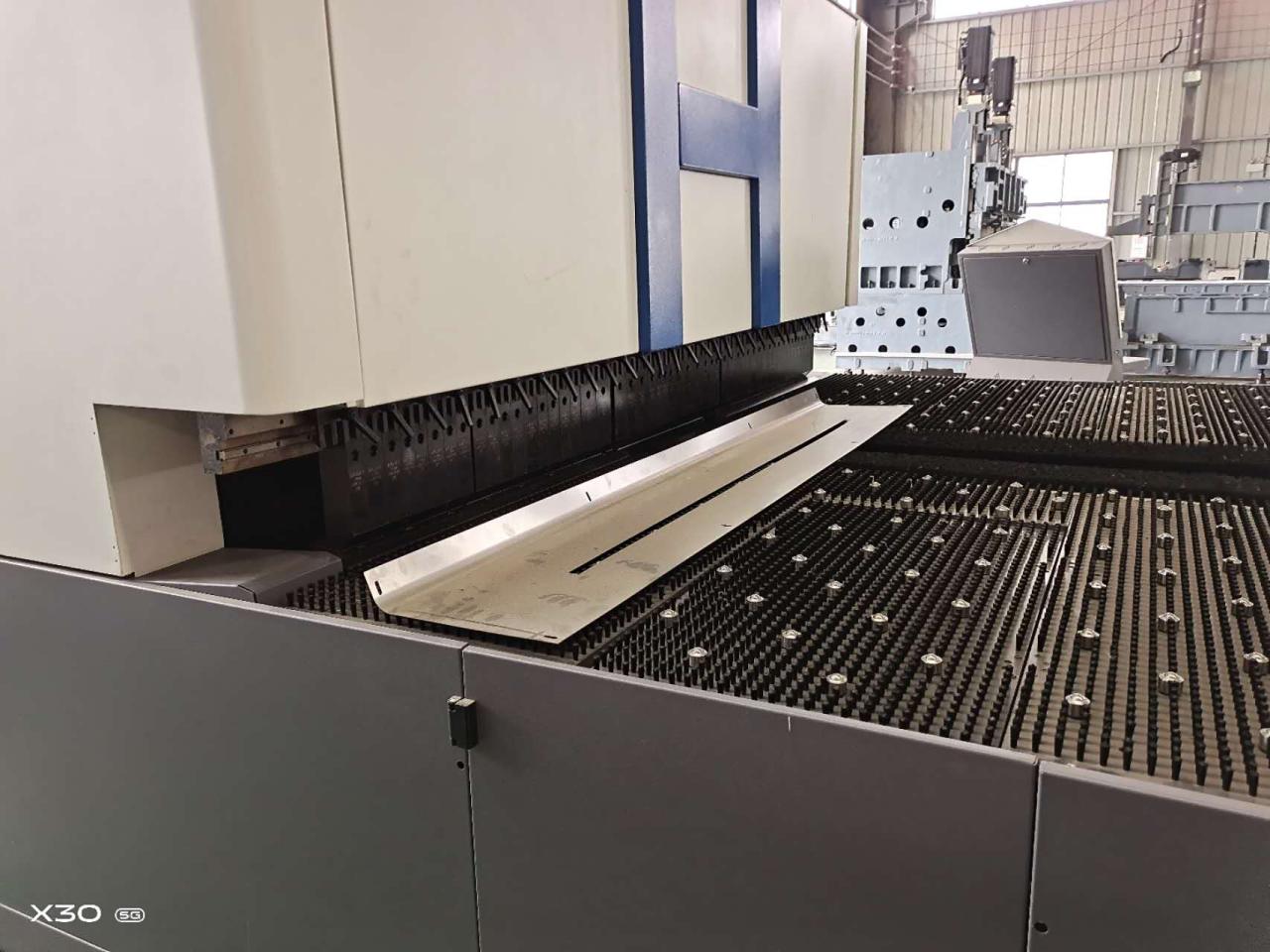

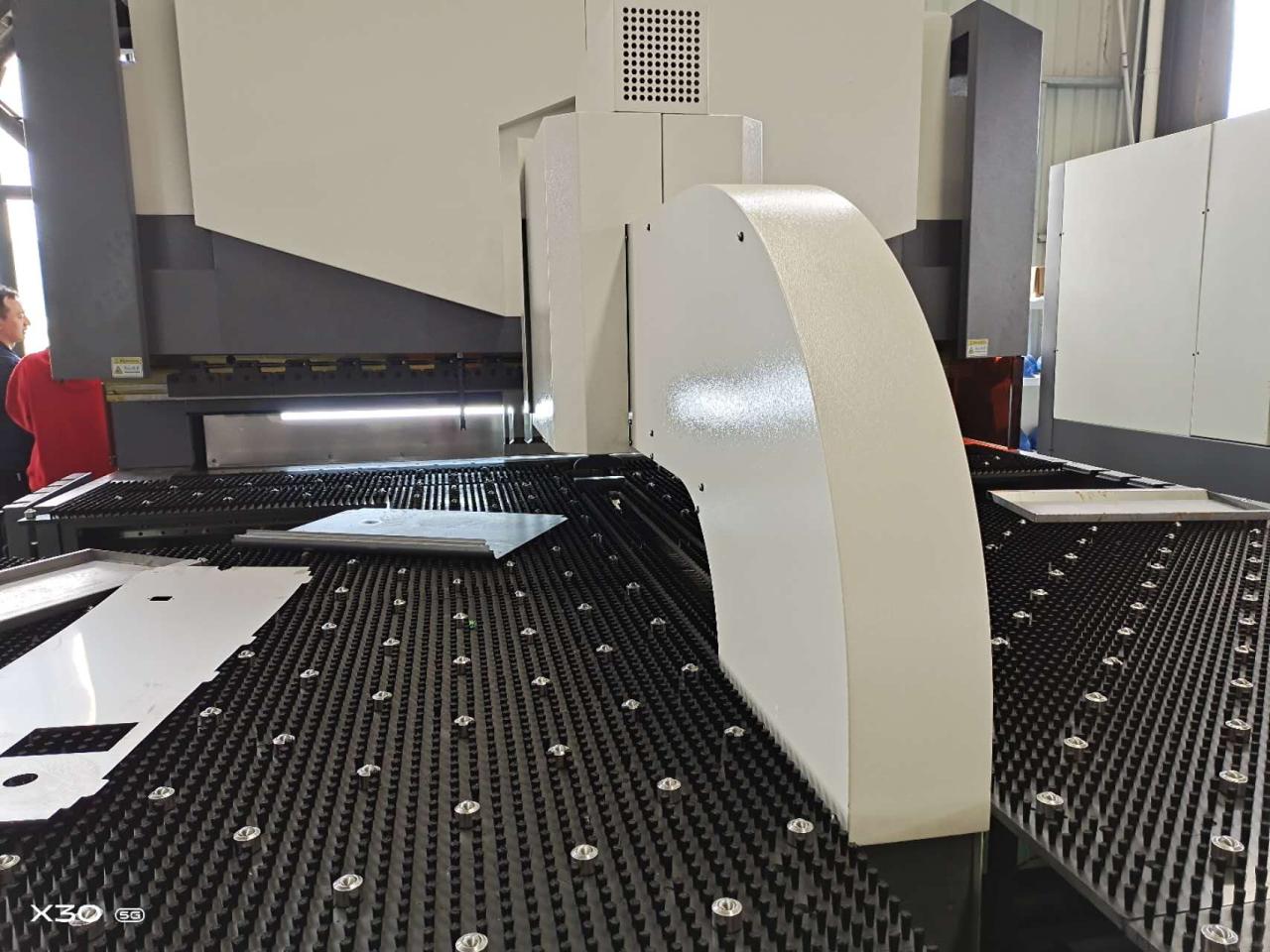

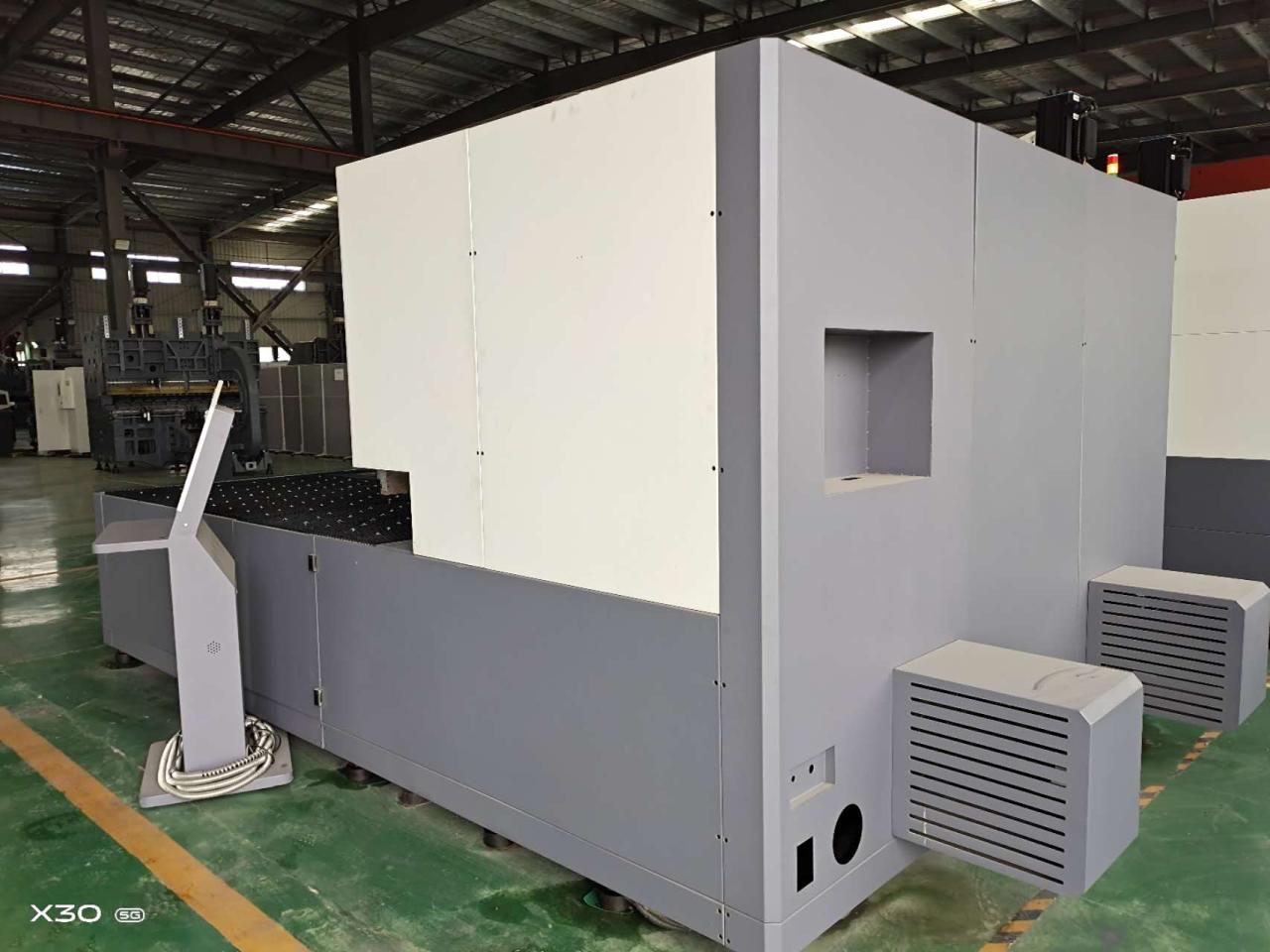

Detailed Images

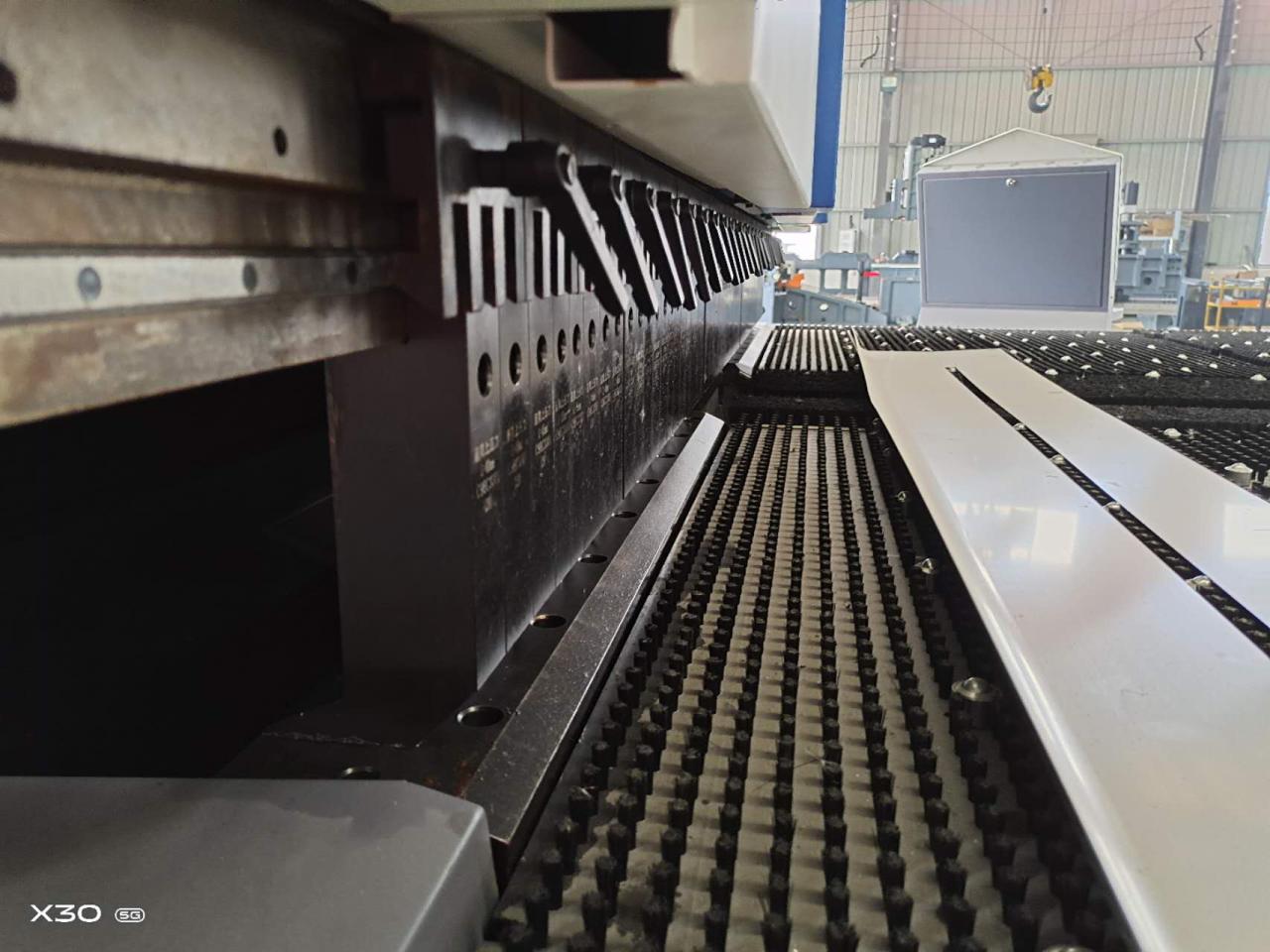

RAYMAX patented tooling die

RAYMAX patented design of the tooling die, which is friendly to stainless steel. there will be no trace left on the plate surface, to ensure the perfect bending effect.

Full automatic type CNC robot

To match with CNC robot arm, realize the full automatic plate loading and work piece unloading. The ensure the most effective and save labor cost!
